PVC Hot-cut Pelletizing Extrusion Line Equipment

PVC Hot-cut Pelletizing Extrusion Line Equipment

Order phone:+86-18961696037
E-mail:seika@yuanlvpv.com

Detail

PVC Hot-cut Pelletizing Extrusion Line Equipment

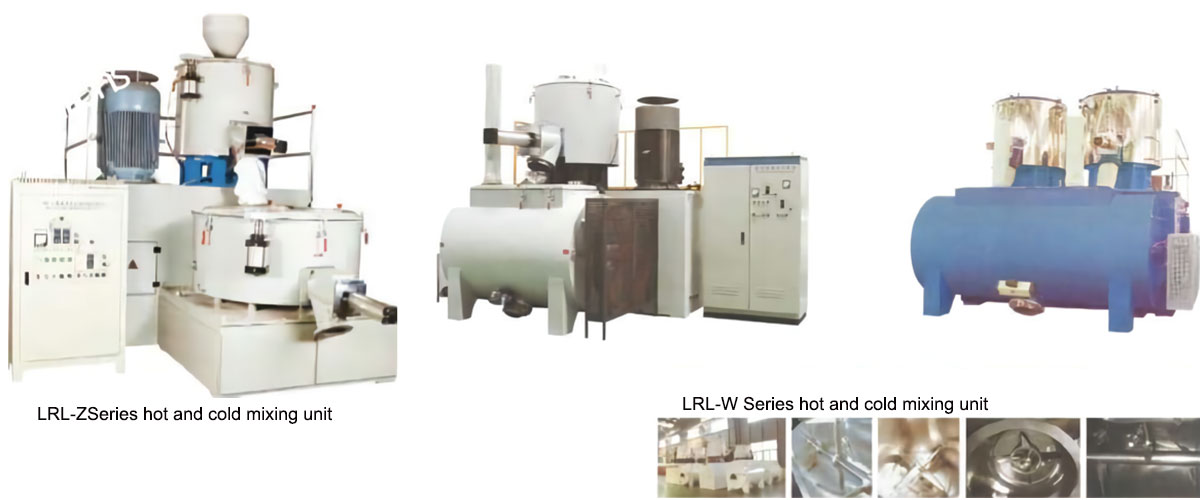

LRL-ZSeries hot and cold mixing unit

LRL--Z series plastic mixer is mainly suitable for mixing, drying, drying and drying of various resins such as polyethylene, polypropylene, polyvinyl chloride and other raw materials before processing, and can also be used for phenolic Resin mixing, the unit combines hot and cold mixing processes.
1. High-quality production process (welding and polishing), so that the material will not stick to the inside of the pot body wall and it is easy to discharge quickly and easily.
2. Sheli operation: stable, no noise, short time, fast mixing and so on.



LRL-W Series hot and cold mixing unit

LRL--W horizontal mixing unit is mainly used for mixing, stirring, drying, coloring and other processes of various materials in the litter, rubber, daily chemical industry and other industries. It is an ideal equipment for the production of plastic sheets, pipes, profiles and degradable plastics.


Model

LRL-ZSeries hot and cold mixing unit

LRL-W Series hot and cold mixing unit

Parameter

LRI -200/500

LRI -300/600

LRI -500/1000

LRI -800/1600

LRL-800,/2000

LRL-1000/3000

Total volume

200/500

300/600

500/1000

800/1600

800,/2000

1000/3000
Effective capacity

150/320

290/360

330/640

600/1050

600/1550

700/2100

Stirrinfl speed

950/130

950/100

860/50

740/50

700/50 600/50

Mixing time

8-2

8-12

8-15

8-15

8-12

8-12
Motor power

45&11

55&11

75&15

132/&22

132/30 160/30

Overall timension

4580X2240X2470

4800X2640X2480

5600X3000X3100

5170X3200X4480

5170X3800X5380

5620X4200X5800

Weiht

2500

3200

3800

5200

5500

6500
Note: The abowe paramelers are subject change without nolice
