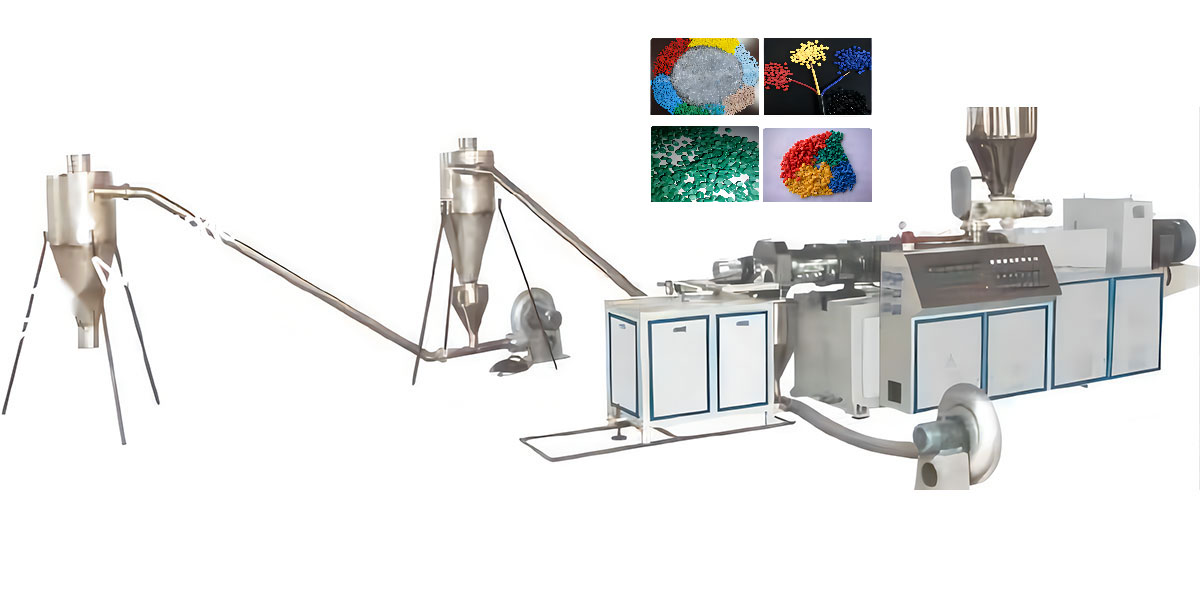

PVC Hot-cut Pelletizing Extrusion Line Equipment

PVC Hot-cut Pelletizing Extrusion Line Equipment


Hot-cut pelletizing production equipment can produce rigid PVC pellets and cable pellets. The equipment can adopt the screen changing device according to the user's needs,

The production line adopts hot-cut material, air-cooled, and can adopt one-stage or multi-stage air-cooled conveying method according to the characteristics of the processed particles, and the length of the particles can be adjusted arbitrarily.

High prec ision pelletizing

High cutting efficiency

High production capacity

Installation easy to move



Model

Screw specs (mm)

Granule size (mm)

Motor power(kw)

Capacity(kg/h)

LSJZ55

55/110

Φ3-5

22/30

100-120

LSJZ65

65/132

Φ3-5

37

220-260

LSJZ80

80/156

Φ3-5

55

320-450

LSJZ92

92/188

Φ3-5

110

650-800

Note: The abowe paramelers are subject change without nolice
