PS,PP,PE,PC,PVC Profile Extrusion Production Line Equipment

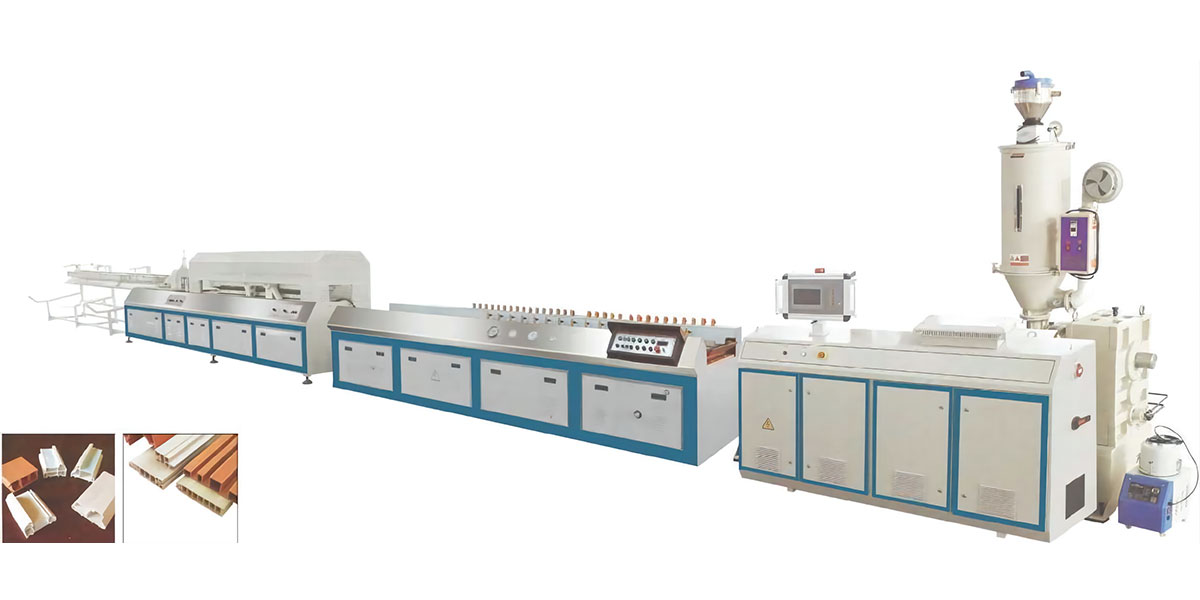

LSJ Single-Screw Extrusion Production Line Equipment

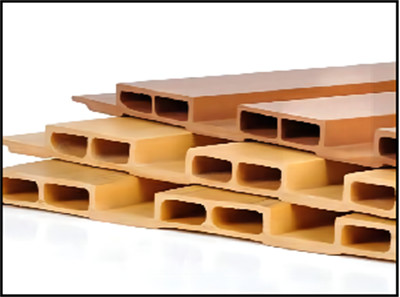

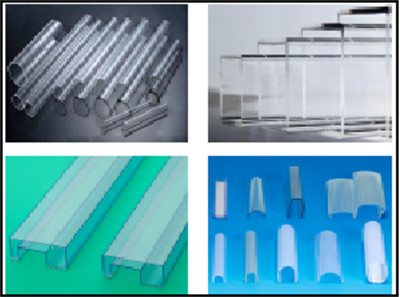

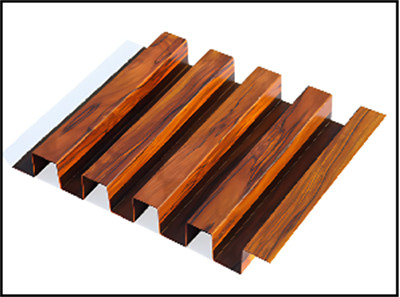

The screw design of LSJ series single screw extrusion production line equipment avoids high shearing and over-plasticization of raw materials. The raw materials are: PS, PP, PE, PC, PVC, which makes the surface wood grain of the extruded product unique and obvious, and the product is not Deformation, non-fading, fireproof, anti-corrosion, anti-moth, anti-aging and anti-ultraviolet. It is mainly used for the production of decorative ecological wood products such as Great Wall panels, partition panels, gussets, stair handrails, lampshades, photo frame lines, shutters, tile lines and so on.



PS,PP,PE,PC,PVC Profile Extrusion Production Line Equipment1
PS,PP,PE,PC,PVC Profile Extrusion Production Line Equipment2
PS,PP,PE,PC,PVC Profile Extrusion Production Line Equipment3



Main techinical parameter:

Model

LSJ65

LSJ75 LSJ90 LSJ120

Screw diameter(mm )

65

75

90

120

Diameter ratio (L/D)

20-40

Main motor power (kw)

18.5- 30kw 22-37kw 37-55kw 55-75kw

Barrel heating power(kw)

12kw

18kw

30kw

45kw

Product maximum width (mm)

110mm

180mm

240mm 300mm

Screw speed

35-140rpm/min

Note: The abowe paramelers are subject change without nolice
