PVC,CPVC,UPVC,WPC Profile Extrusion Production Line Equipment

PVC,CPVC,UPVC WPC Profile Extrusion Production Line Equipmen

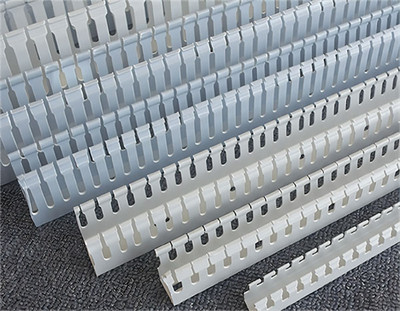

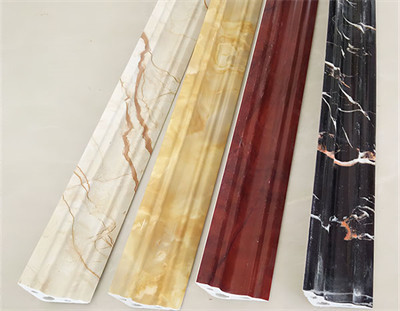

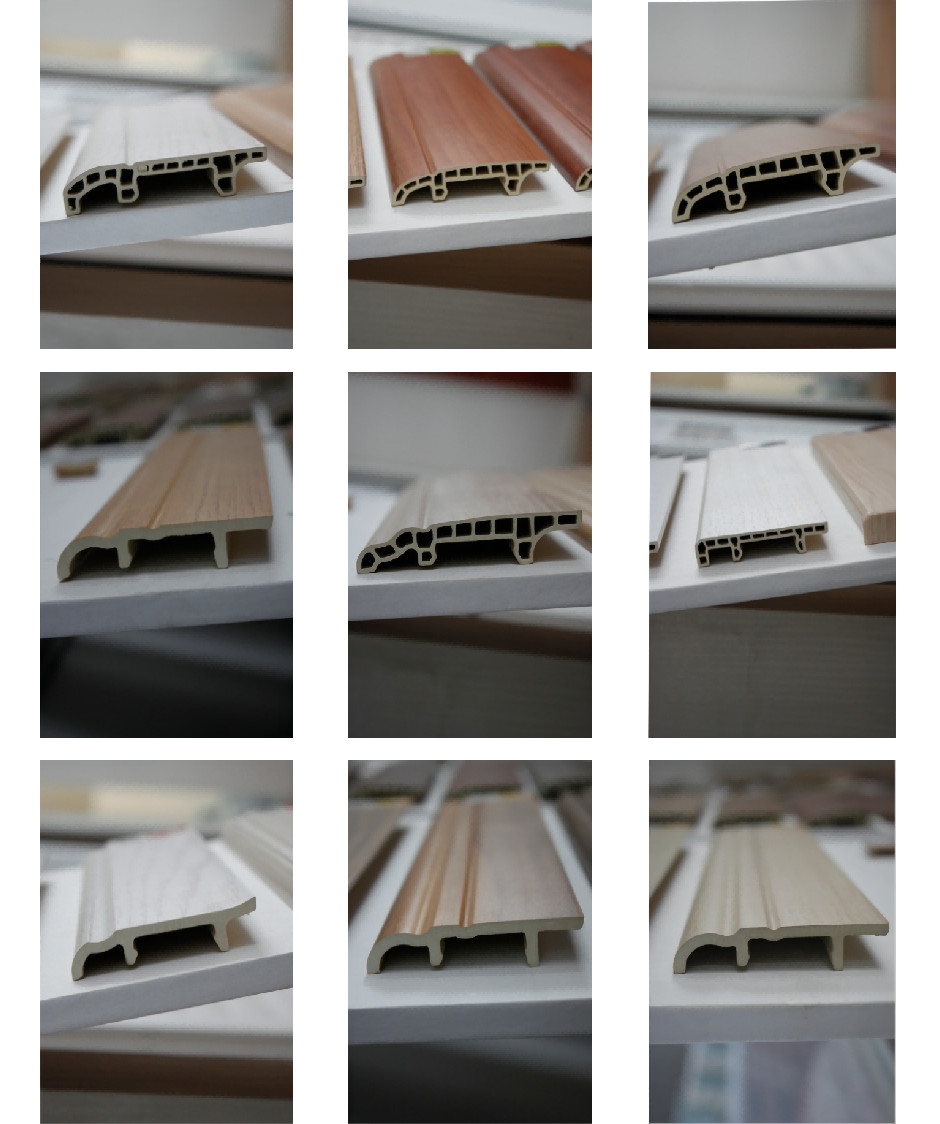

Mainly used for the production of electrical products such as PVC electrical cabinet line ducts, decoration threading pipes, open wire ducts and other electrical products; decoration materials such as top corner lines, waist lines, skirting lines, etc.; as well as window profiles, door casing lines and other products .
Different product requirements can be configured according to customer requirements to produce single-layer and multi-layer composite products; ASA and other materials can also be co-extruded on the surface to increase anti-aging, color difference years and other requirements.

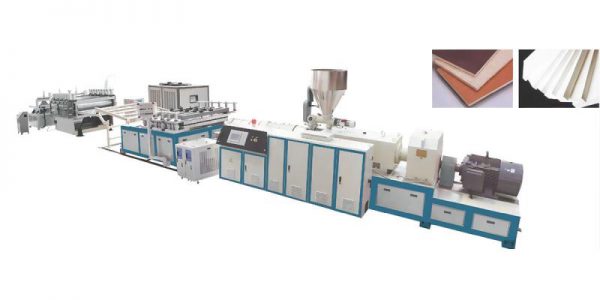

PVC,CPVC,UPVC,WPC Profile Extrusion Production Line Equipment1

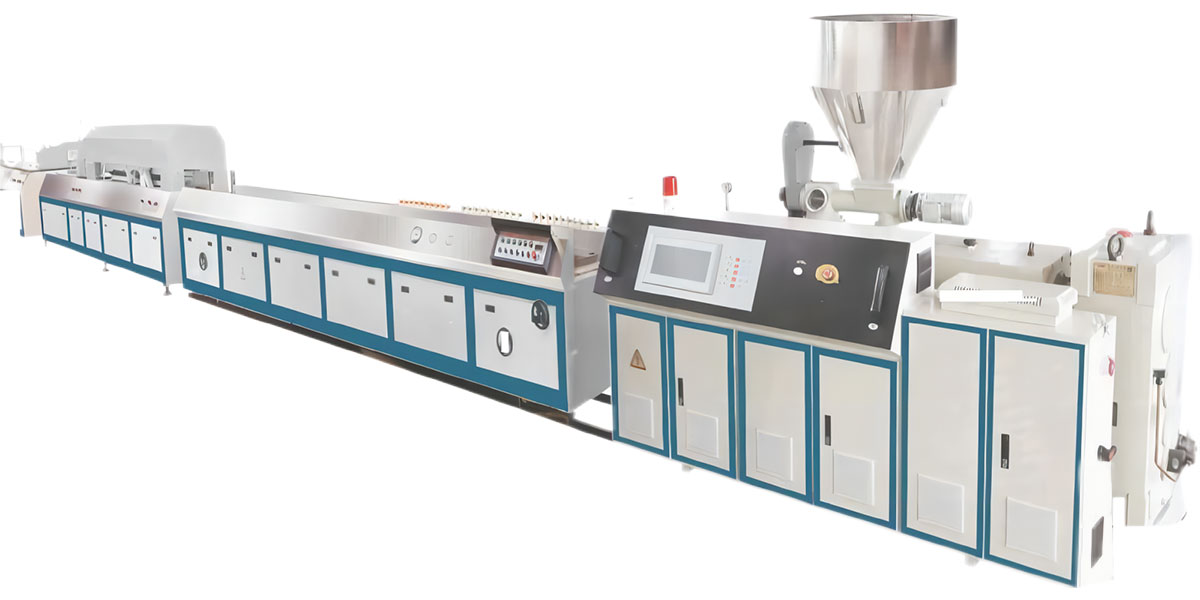

PVC,CPVC,UPVC,WPC Profile Extrusion Production Line Equipment2



Main techinical parameter:

Model

LJSZ-51

LJSZ-55 LJSZ-65 LJSZ-80

Screw diameter(mm )

51/105

55/110

65/132

80/156

Effective working length of screw(mm)

1050

1150

1440 1800

Screw speed (r/min)

1—32

1—32

1-34.4 1—38

Extruder motor

18.5kw

22kw 37kw 55kw/75kw

Heating power (kw)

7.9

18

24 34

Out put(kg/h)

150kg/h

180kg/h 250kg/h 480kg/h

Center height (mm)

1000

1000

1000

1100
Note: The abowe paramelers are subject change without nolice

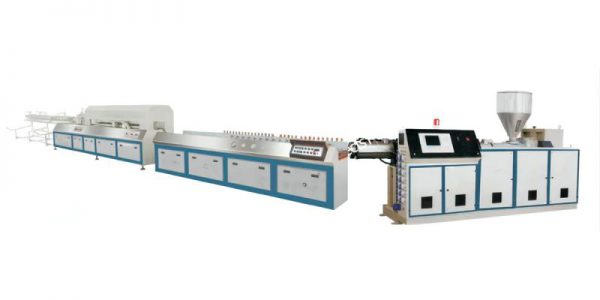

PVC,CPVC,UPVC,WPC Profile Extrusion Production Line Equipment3
