PVC Wide Floor Leather, Waterproof Rolls Extrusion Production Line Equipment

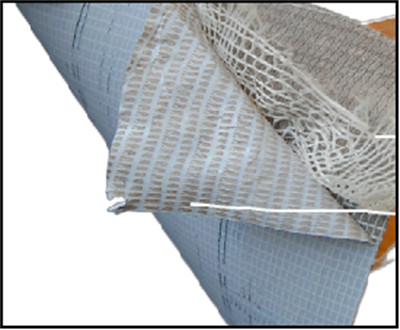

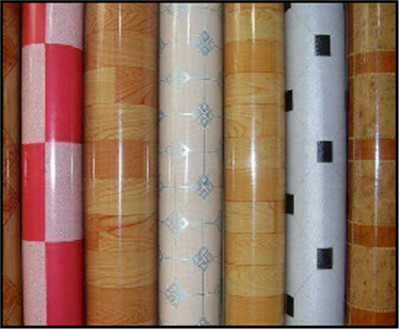

Mainly used in the production of PVC floor leather products and PVC waterproof Rolls products. PVC floor leather has the properties of wear resistance, corrosion resistance, anti-skid, anti-seepage and flame retardant, and is widely used in locomotives, hotels, hotels, entertainment halls, exhibition halls, and families. PVC waterproofing membrane can be applied to various roof waterproofing, basements, reservoirs, dams, highway tunnels, railway tunnels, air raid shelters, grain depots, garbage plants, wastewater treatment and other building waterproofing projects in the industrial and construction industries.
Can be configured with different equipment components according to customer requirements to produce single-layer and multi-layer composite products; unwinding devices can also be added to produce internal reinforced products or surface composite non-woven fabrics, PVC decorative films and other products .
Main Technical Specification
|
Specification |
Double Layers
|
Three Layers
|
Products Width |
1500-2000mm
|
2000-3000mm
|
ProductsThickness |
0.7-3.5mm
|
0.7-3.5mm
|
ExtmderSpedfication |
LSJZ80/156&LSJZ92/188
|
LSJZ65/132&LSJZ92/188&LSJZ80/156
|
Main Motor Power
|
55kw&90kw
|
37kw&90kw&55kw
|
ExtrusionOutput |
450-500kg/h
|
600-750kg/h
|
Note:The specifications are subject to change without prior notice. |
